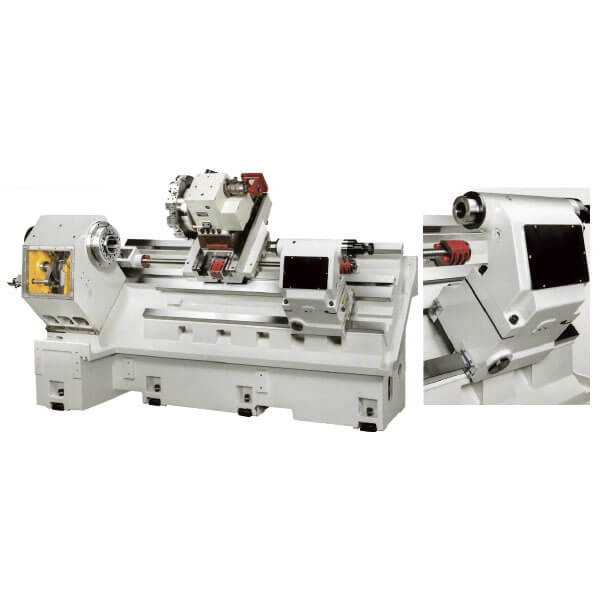

SL-1200 Slant Bed CNC Turning Lathe
A new standard in parts machining!
Applications
- Precision parts
- Precision nuts
- Watch parts
- Hand tools
Specifications
| Content | Unit | SL-1200 | |
|---|---|---|---|
| Travel | Max.Swing Over Bed | mm | 700 |
| Max.Swinig Over Cross Slide | mm | 450 | |
| Distance Between Centers | mm | 1200 | |
| Max. Turning Length | mm | 1200 | |
| Max. Turning Diameter | mm | 450 | |
| Max. Bar Diameter | mm | 92 | |
| Spindle | Hyd. Chuck Diameter | inch | 12" |
| Spindle Nose | type | A2-8 | |
| Bearing Type | type | NN3028 | |
| Spindle Bearing Dia. | mm | 140 | |
| Spindle Speed | rpm | 2500 | |
| Max.Bar Capacity | mm | ψ92 | |
| Turret | Number of Tools | pcs | 12 |
| Square Tool Shank Size | mm | 25 | |
| Round Tool Shank Size | mm | 40 | |
| X-Axis | Tavel | mm | 225+40 |
| Rapid Traverse Rate | m/min | 20 | |
| Servo Motor | kw | 3 | |
| Z-Axis | Tavel | mm | 1200 |
| Rapid Traverse Rate | m/min | 20 | |
| Servo Motor | kw | 3 | |
| Tailstock | Quilt Diameter | mm | 80 |
| Morse Slideway | type | MT5 | |
| X-Axis Slideway | type | Box Way | |
| Z-Axis Slideway | |||
| Coolant Tank Capacity | liter | 200 | |
| Hydraulic Pump Motor | hp | 2 | |
| Machine Size | cm | 300x175x196 | |
| Machine Weight | kg | 6200 | |
*Design and specification are subject to change without prior notice
Standard Equipment

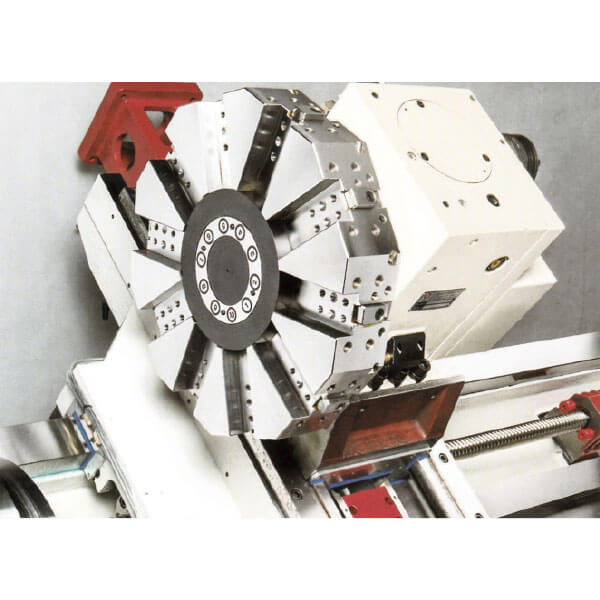

- Hydraulic Turret
- Coolant System
- Chuck Air Blast
- Fully Enclosed Splash Guard
- Chuck Open/Close Confirmation
- Hydraulic Pressure Confirmation
- Chip Conveyer and Cart
- Single Point Orientation on Spindle
- Programmable Tailstock
- Spindle Rigid Tapping
- Heat Exchanger
- Tool Box with Tools
- I.D. & O.D. Tool Holedrs
- Tool Shim & Splashing Block
- Leveling Bolts & Pads
- 1 Year Machine Warranty
- 2 Years Control Warranty
Optional Equipment
- Auto Door
- Over Load
- Oil Mist Collector System
- Coolant through ball screws on 2 axis
- Bar feeder
- Auto Length Measuring Tool-setter
- Hydraulic Power Unit Cooling System
- Air-conditional Heat Exchanger
- Cutting Fluid Cooling Device
- 20 bar High Pressure Coolant System
- Chuck High/Low Pressure Change
- Volt Stabilizer
- Voltage Regulator
- Oil/Water Separator
- 2 Axes Linear Scale
- Parts catcher
- Servo Turret
- Parts conveyor
- Wireless Edge Measuring System
